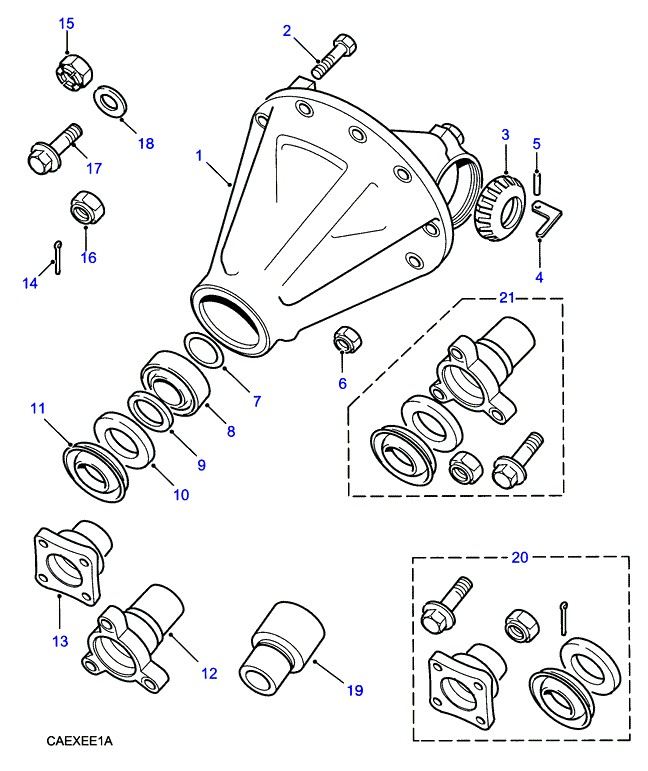

Land Rover Discovery 1 (L25) каталог запчастей и аксессуаров
| PNC | Название | с | по | Q | RRP | Номер |
|---|---|---|---|---|---|---|
| ДИФФЕРЕНЦИАЛ 10 SPLINE SHAFT 4 BOLT FLANGE NEW ПЕРЕД ОФОРМЛЕНИЕМ ЗАКАЗА УТОЧНИТЕ ВЕРСИЮ ДЛЯ СЕРВИСНОЙ ЗАМЕНЫ | 1 | FTC2750 | ||||
| ДИФФЕРЕНЦИАЛ 10 SPLINE SHAFT 4 BOLT FLANGE NEW ПЕРЕД ОФОРМЛЕНИЕМ ЗАКАЗА УТОЧНИТЕ ВЕРСИЮ ДЛЯ СЕРВИСНОЙ ЗАМЕНЫ | 1 | FTC2750 | ||||
| ДИФФЕРЕНЦИАЛ 10 SPLINE SHAFT 4 BOLT FLANGE RECONDITIONED | 1 | FTC2750R | ||||
| ДИФФЕРЕНЦИАЛ 10 SPLINE SHAFT 4 BOLT FLANGE RECONDITIONED | 1 | FTC2750R | ||||
| ДИФФЕРЕНЦИАЛ 24 SPLINE SHAFT 4 BOLT FLANGE NEW; V8 | 1 | FTC3272 ↳FTC5142 | ||||
| ДИФФЕРЕНЦИАЛ 24 SPLINE SHAFT 4 BOLT FLANGE NEW; V8 | 1 | FTC3272 ↳FTC5142 | ||||
| ДИФФЕРЕНЦИАЛ 24 SPLINE SHAFT 4 BOLT FLANGE NEW | 1 | FTC3272 ↳FTC5142 | ||||
| ДИФФЕРЕНЦИАЛ 24 SPLINE SHAFT 4 BOLT FLANGE NEW | 1 | FTC3272 ↳FTC5142 | ||||
| ДИФФЕРЕНЦИАЛ 24 SPLINE SHAFT 4 BOLT FLANGE RECONDITIONED; V8 | 1 | FTC3272R ↳FTC3272E | ||||
| ДИФФЕРЕНЦИАЛ 24 SPLINE SHAFT 4 BOLT FLANGE RECONDITIONED; V8 | 1 | FTC3272R ↳FTC3272E | ||||
| ДИФФЕРЕНЦИАЛ 24 SPLINE SHAFT 4 BOLT FLANGE RECONDITIONED | 1 | FTC3272R ↳FTC3272E | ||||
| ДИФФЕРЕНЦИАЛ 24 SPLINE SHAFT 4 BOLT FLANGE RECONDITIONED | 1 | FTC3272R ↳FTC3272E | ||||
| ДИФФЕРЕНЦИАЛ 24 SPLINE SHAFT NEW 3 BOLT FLANGE | 1 | FTC3723 ↳FTC5143 | ||||
| ДИФФЕРЕНЦИАЛ 24 SPLINE SHAFT RECONDITIONED 3 BOLT FLANGE | 1 | FTC3723E | ||||
| RING-DIFFERENTIAL LOCKING 10 SPLINE SHAFT NEW | 0 | FRC5204 ↳FTC4210 | ||||
| RING-DIFFERENTIAL LOCKING 10 SPLINE SHAFT NEW | 2 | FTC4210 | ||||
| RING-DIFFERENTIAL LOCKING 10 SPLINE SHAFT RECONDITIONED | 0 | FRC5204 ↳FTC4210 | ||||
| RING-DIFFERENTIAL LOCKING 10 SPLINE SHAFT RECONDITIONED | 2 | FTC4210 | ||||
| RING-DIFFERENTIAL LOCKING | 0 | FRC5204 ↳FTC4210 | ||||
| RING-DIFFERENTIAL LOCKING | 2 | FTC4210 | ||||
| TAB-DIFFERENTIAL LOCKING RING 10 SPLINE SHAFT NEW | 2 | FRC5661 | ||||
| TAB-DIFFERENTIAL LOCKING RING 10 SPLINE SHAFT RECONDITIONED | 2 | FRC5661 | ||||
| TAB-DIFFERENTIAL LOCKING RING | 2 | FRC5661 | ||||
| PIN-ROLL-SPRING TENSION 10 SPLINE SHAFT NEW | 2 | 576159 | ||||
| PIN-ROLL-SPRING TENSION 10 SPLINE SHAFT RECONDITIONED | 2 | 576159 | ||||
| PIN-ROLL-SPRING TENSION | 2 | 576159 | ||||
| ШЕСТИГРАННАЯ ГАЙКА 10 SPLINE SHAFT NEW | 10 | NY606041L | ||||
| ШЕСТИГРАННАЯ ГАЙКА 10 SPLINE SHAFT RECONDITIONED | 10 | NY606041L | ||||
| ШЕСТИГРАННАЯ ГАЙКА '3/8" UNF' | 10 | NY606041L | ||||
| SHIM-BEARING DIFFERENTIAL 10 SPLINE SHAFT '0.050"' | 0 | FRC1193 ↳549252 | ||||
| SHIM-BEARING DIFFERENTIAL 10 SPLINE SHAFT '0.050"' | 0 | FRC1193 ↳549252 | ||||
| SHIM-BEARING DIFFERENTIAL 10 SPLINE SHAFT '0.062"' | 0 | FRC1195 | ||||
| SHIM-BEARING DIFFERENTIAL 10 SPLINE SHAFT '0.062"' | 0 | FRC1195 | ||||
| SHIM-BEARING DIFFERENTIAL 10 SPLINE SHAFT '0.064"' | 0 | FRC1197 | ||||
| SHIM-BEARING DIFFERENTIAL 10 SPLINE SHAFT '0.064"' | 0 | FRC1197 | ||||
| SHIM-BEARING DIFFERENTIAL 10 SPLINE SHAFT '0.066"' | 0 | FRC1199 | ||||
| SHIM-BEARING DIFFERENTIAL 10 SPLINE SHAFT '0.066"' | 0 | FRC1199 | ||||
| SHIM-BEARING DIFFERENTIAL 10 SPLINE SHAFT '0.068"' | 0 | FRC1201 | ||||
| SHIM-BEARING DIFFERENTIAL 10 SPLINE SHAFT '0.068"' | 0 | FRC1201 | ||||
| SHIM-BEARING DIFFERENTIAL 10 SPLINE SHAFT '0.070"' | 0 | FRC1203 | ||||
| SHIM-BEARING DIFFERENTIAL 10 SPLINE SHAFT '0.070"' | 0 | FRC1203 | ||||
| SHIM-BEARING DIFFERENTIAL 10 SPLINE SHAFT '0.072"' | 0 | 539718 | ||||
| SHIM-BEARING DIFFERENTIAL 10 SPLINE SHAFT '0.072"' | 0 | 539718 | ||||
| SHIM-BEARING DIFFERENTIAL 10 SPLINE SHAFT '0.074"' | 0 | 539720 | ||||
| SHIM-BEARING DIFFERENTIAL 10 SPLINE SHAFT '0.074"' | 0 | 539720 | ||||
| SHIM-BEARING DIFFERENTIAL 10 SPLINE SHAFT '0.076"' | 0 | 539722 | ||||
| SHIM-BEARING DIFFERENTIAL 10 SPLINE SHAFT '0.076"' | 0 | 539722 | ||||
| SHIM-BEARING DIFFERENTIAL 10 SPLINE SHAFT '0.080"' | 0 | 539724 | ||||
| SHIM-BEARING DIFFERENTIAL 10 SPLINE SHAFT '0.080"' | 0 | 539724 | ||||
| SHIM-BEARING DIFFERENTIAL 24 SPLINE SHAFT 2.155MM | 0 | FTC3869 ↳TYS101040 | ||||
| SHIM-BEARING DIFFERENTIAL 24 SPLINE SHAFT 2.155MM | 0 | FTC3869 ↳TYS101040 | ||||
| SHIM-BEARING DIFFERENTIAL 24 SPLINE SHAFT 2.105MM | 0 | FTC3871 ↳TYS101060 | ||||
| SHIM-BEARING DIFFERENTIAL 24 SPLINE SHAFT 2.105MM | 0 | FTC3871 ↳TYS101060 | ||||
| SHIM-BEARING DIFFERENTIAL 24 SPLINE SHAFT 2.055MM | 0 | FTC3873 ↳TYS101080 | ||||
| SHIM-BEARING DIFFERENTIAL 24 SPLINE SHAFT 2.055MM | 0 | FTC3873 ↳TYS101080 | ||||
| SHIM-BEARING DIFFERENTIAL 24 SPLINE SHAFT 2.005MM | 0 | FTC3875 ↳TYS101100 | ||||
| SHIM-BEARING DIFFERENTIAL 24 SPLINE SHAFT 2.005MM | 0 | FTC3875 ↳TYS101100 | ||||
| SHIM-BEARING DIFFERENTIAL 24 SPLINE SHAFT 1.955MM | 0 | FTC3877 ↳TYS101120 | ||||
| SHIM-BEARING DIFFERENTIAL 24 SPLINE SHAFT 1.955MM | 0 | FTC3877 ↳TYS101120 | ||||
| SHIM-BEARING DIFFERENTIAL 24 SPLINE SHAFT 1.905MM | 0 | FTC3879 ↳TYS101140 | ||||
| SHIM-BEARING DIFFERENTIAL 24 SPLINE SHAFT 1.905MM | 0 | FTC3879 ↳TYS101140 | ||||
| SHIM-BEARING DIFFERENTIAL 24 SPLINE SHAFT 1.855MM | 0 | FTC3881 ↳TYS101160 | ||||
| SHIM-BEARING DIFFERENTIAL 24 SPLINE SHAFT 1.855MM | 0 | FTC3881 ↳TYS101160 | ||||
| SHIM-BEARING DIFFERENTIAL 24 SPLINE SHAFT 1.805MM | 0 | FTC3883 ↳TYS101180 | ||||
| SHIM-BEARING DIFFERENTIAL 24 SPLINE SHAFT 1.805MM | 0 | FTC3883 ↳TYS101180 | ||||
| SHIM-BEARING DIFFERENTIAL 24 SPLINE SHAFT 1.755MM | 0 | FTC3885 ↳TYS101200 | ||||
| SHIM-BEARING DIFFERENTIAL 24 SPLINE SHAFT 1.755MM | 0 | FTC3885 ↳TYS101200 | ||||
| SHIM-BEARING DIFFERENTIAL 24 SPLINE SHAFT 1.705MM | 0 | FTC3887 ↳TYS101220 | ||||
| SHIM-BEARING DIFFERENTIAL 24 SPLINE SHAFT 1.705MM | 0 | FTC3887 ↳TYS101220 | ||||
| SHIM-BEARING DIFFERENTIAL 24 SPLINE SHAFT 1.655MM | 0 | FTC3889 ↳TYS101240 | ||||
| SHIM-BEARING DIFFERENTIAL 24 SPLINE SHAFT 1.655MM | 0 | FTC3889 ↳TYS101240 | ||||
| SHIM-BEARING DIFFERENTIAL 24 SPLINE SHAFT 1.605MM | 0 | FTC3891 ↳TYS101260 | ||||
| SHIM-BEARING DIFFERENTIAL 24 SPLINE SHAFT 1.605MM | 0 | FTC3891 ↳TYS101260 | ||||
| SHIM-BEARING DIFFERENTIAL 24 SPLINE SHAFT 1.555MM | 0 | FTC3893 ↳TYS101280 | ||||
| SHIM-BEARING DIFFERENTIAL 24 SPLINE SHAFT 1.555MM | 0 | FTC3893 ↳TYS101280 | ||||
| SHIM-BEARING DIFFERENTIAL 24 SPLINE SHAFT 1.505MM | 0 | FTC3895 ↳TYS101300 | ||||
| SHIM-BEARING DIFFERENTIAL 24 SPLINE SHAFT 1.505MM | 0 | FTC3895 ↳TYS101300 | ||||
| SHIM-BEARING DIFFERENTIAL 2.155MM INNER DIAMETER 32.5MM | 0 | TYS101040 | ||||
| SHIM-BEARING DIFFERENTIAL 2.105MM INNER DIAMETER 32.5MM | 0 | TYS101060 | ||||
| SHIM-BEARING DIFFERENTIAL 2.055MM INNER DIAMETER 32.5MM | 0 | TYS101080 | ||||
| SHIM-BEARING DIFFERENTIAL 2.005MM INNER DIAMETER 32.5MM | 0 | TYS101100 | ||||
| SHIM-BEARING DIFFERENTIAL 1.955MM INNER DIAMETER 32.5MM | 0 | TYS101120 | ||||
| SHIM-BEARING DIFFERENTIAL 1.905MM INNER DIAMETER 32.5MM | 0 | TYS101140 | ||||
| SHIM-BEARING DIFFERENTIAL 1.855MM INNER DIAMETER 32.5MM | 0 | TYS101160 | ||||
| SHIM-BEARING DIFFERENTIAL 1.805MM INNER DIAMETER 32.5MM | 0 | TYS101180 | ||||
| SHIM-BEARING DIFFERENTIAL 1.755MM INNER DIAMETER 32.5MM | 0 | TYS101200 | ||||
| SHIM-BEARING DIFFERENTIAL 1.705MM INNER DIAMETER 32.5MM | 0 | TYS101220 | ||||
| SHIM-BEARING DIFFERENTIAL 1.655MM INNER DIAMETER 32.5MM | 0 | TYS101240 | ||||
| SHIM-BEARING DIFFERENTIAL 1.605MM INNER DIAMETER 32.5MM | 0 | TYS101260 | ||||
| SHIM-BEARING DIFFERENTIAL 1.555MM INNER DIAMETER 32.5MM | 0 | TYS101280 | ||||
| SHIM-BEARING DIFFERENTIAL 1.505MM INNER DIAMETER 32.5MM | 0 | TYS101300 | ||||
| BEARING-TAPER ROLLER | 1 | 539707 | ||||
| SPACER-PINION BEARING | 1 | 539745 | ||||
| САЛЬНИК FRONT AND REAR | 1 | FRC8220 | ||||
| САЛЬНИК FRONT AND REAR | 1 | FRC8220 | ||||
| САЛЬНИК FRONT AND REAR | 1 | FTC5258 | ||||
| САЛЬНИК FRONT AND REAR | 1 | FTC5258 | ||||
| MUDSHIELD-FRONT & REAR DIFFERENTIAL | 1 | FRC8154 | ||||
| MUDSHIELD-FRONT & REAR DIFFERENTIAL | 1 | FRC8154 | ||||
| MUDSHIELD-FRONT & REAR DIFFERENTIAL | 1 | FTC5317 ↳TBA500010 | ||||
| MUDSHIELD-FRONT & REAR DIFFERENTIAL | 1 | FTC5317 ↳TBA500010 | ||||
| FLANGE-ПРИВОДНОЙ ВАЛ COUPLING DIFFERENTIAL 3 BOLT FLANGE | 0 | FTC3706 ↳FTC3729 | ||||
| FLANGE-ПРИВОДНОЙ ВАЛ COUPLING DIFFERENTIAL 3 BOLT FLANGE | 0 | FTC3729 ↳STC3723 | ||||
| FLANGE-ПРИВОДНОЙ ВАЛ COUPLING DIFFERENTIAL 4 BOLT FLANGE | 1 | FRC3002 ↳STC3722 | ||||
| ШПЛИНТ | 1 | PS608101L | ||||
| ШПЛИНТ | 1 | PS608101L | ||||
| КОРОНЧАТАЯ ГАЙКА | 1 | 3259 | ||||
| КОРОНЧАТАЯ ГАЙКА | 1 | 3259 | ||||
| ШЕСТИГРАННАЯ ГАЙКА M16 | 1 | NY116041L | ||||
| ШЕСТИГРАННАЯ ГАЙКА M16 | 1 | NY116041L | ||||
| ШЕСТИГРАННАЯ ГАЙКА M16 | 1 | NY116041L | ||||
| ШЕСТИГРАННАЯ ГАЙКА M16 | 1 | NY116041L | ||||
| ШЕСТИГРАННАЯ ГАЙКА M16 | 1 | NY116041L | ||||
| ШЕСТИГРАННАЯ ГАЙКА M16 | 1 | NY116041L | ||||
| БОЛТ M12*30 | 1 | FS112301P | ||||
| БОЛТ M12*30 | 1 | FS112301P | ||||
| БОЛТ M12*30 | 1 | FS112301P | ||||
| БОЛТ M12*30 | 1 | FS112301P | ||||
| WASHER-PLAIN NUT SECURING FLANGE | 1 | 90513454 ↳FTC5413 | ||||
| WASHER-PLAIN NUT SECURING FLANGE | 1 | 90513454 ↳FTC5413 | ||||
| WASHER-PLAIN NUT SECURING FLANGE | 1 | 90513454 ↳FTC5413 | ||||
| WASHER-PLAIN NUT SECURING FLANGE | 1 | 90513454 ↳FTC5413 | ||||
| WASHER-PLAIN BOLT SECURING FLANGE | 1 | FTC5413 | ||||
| WASHER-PLAIN BOLT SECURING FLANGE | 1 | FTC5413 | ||||
| WASHER-PLAIN BOLT SECURING FLANGE | 1 | FTC5413 | ||||
| WASHER-PLAIN BOLT SECURING FLANGE | 1 | FTC5413 | ||||
| PIN-REAR AXLE DRIVE FLANGE CENTRALISING | 1 | FTC3707 ↳TID000010 | ||||
| PIN-REAR AXLE DRIVE FLANGE CENTRALISING | 1 | FTC3707 ↳TID000010 | ||||
| PIN-REAR AXLE DRIVE FLANGE CENTRALISING | 1 | FTC3707 ↳TID000010 | ||||
| FLANGE & MUDSHIELD-FRONT & REAR AXLE 4 BOLT FLANGE | 1 | STC3722 ↳STC4858 | ||||
| FLANGE & MUDSHIELD-FRONT & REAR AXLE 3 BOLT FLANGE | 1 | STC3723 | ||||
| HOUSING В СБОРЕ DIFFERENTIAL/FINAL DRIVE WHEEL WITH FILLER/LEVEL PLUG | 1 | FRC5690 | ||||
| HOUSING В СБОРЕ DIFFERENTIAL/FINAL DRIVE WHEEL | 1 | FRC4112 | ||||
| HOUSING В СБОРЕ DIFFERENTIAL/FINAL DRIVE WHEEL WITH FILLER/LEVEL PLUG | 1 | FRC5690 | ||||
| HOUSING В СБОРЕ DIFFERENTIAL/FINAL DRIVE WHEEL LESS FILLER/LEVEL PLUG | 1 | FRC4112 | ||||
| БОЛТ M12*50MM | 4 | BH112101L | ||||
| FLANGE-ПРИВОДНОЙ ВАЛ COUPLING DIFFERENTIAL | 1 | FTC5322 ↳STC3722 |
